Available in stores now
AGC-3500

Outdoor socket switch

Switch for outdoor to control your lamps and/or devices wirelessly

Colour
Black
AGC-3500 Outdoor Socket Switch-Visual

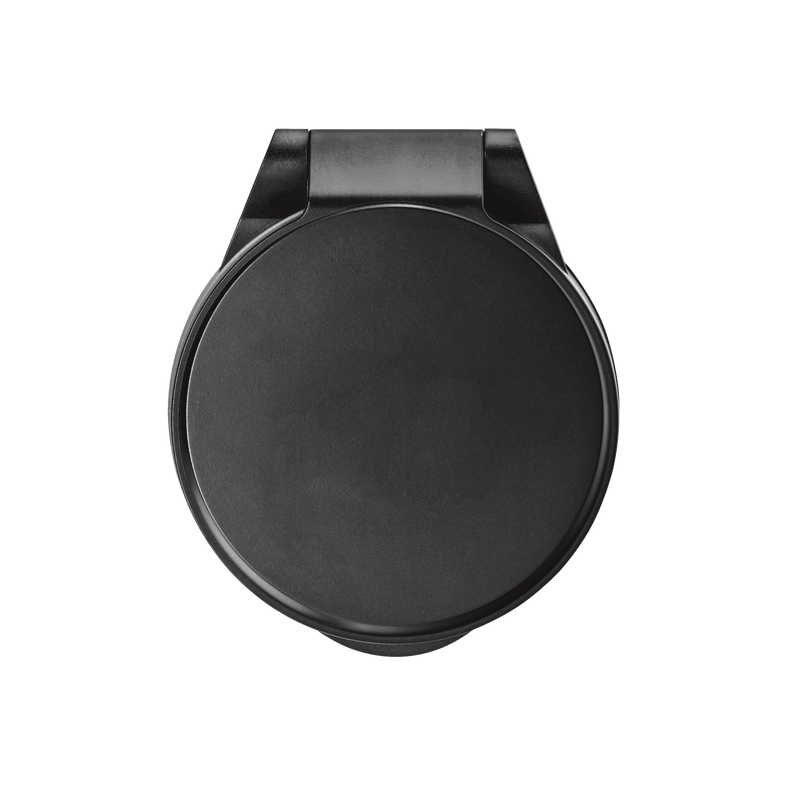

AGC-3500 Outdoor Socket Switch-Top
AGC-3500 Outdoor Socket Switch-Front
AGC-3500 Outdoor Socket Switch-Front
AGC-3500 Outdoor Socket Switch-Visual
AGC-3500 Outdoor Socket Switch-Top
AGC-3500 Outdoor Socket Switch-Visual
AGC-3500 Outdoor Socket Switch-Top
AGC-3500 Outdoor Socket Switch-Front
AGC-3500 Outdoor Socket Switch-Front
AGC-3500 Outdoor Socket Switch-Visual
AGC-3500 Outdoor Socket Switch-Top
product-specifications

Specifications

General

Application
Outdoor
Height of main product (in mm)
70 mm
Width of main product (in mm)
70 mm
Depth of main product (in mm)
53 mm
Total weight
185 g
Weight of main unit
100 g

Electronic

Standby power
1 W
Input frequency of main device
50 Hz
Input voltage of main device
230 V

Receiver

Max number of transmitters supported
32

Connectivity

Wireless range
50 m
Wireless protocols
433 MHz

Protection

IP Code (International Protection Rating)
IPX4

Power

Wireless transmission power (mW)
0.7 mW

Input

Power source
wall socket

Output

Number of power output channels
1
Power output
yes
Output voltage
230
Max Output power - per channel
3500W
Max power per supported lamp/device type
3500W
Total max output power (W)
3500 Watt

Power adapter

Power adapter included
no

Compatibility

Google home compatible
no
Google assistant compatible
no
Philips Hue application
no
Philips Hue entertainment
no
Philips Hue Over-the-Air Updates
no
Apple Homekit
no
Compatible Product Lines
Start Line

Extra information

Item number
71263
EAN code
8713439712636
Warranty
1 year
Package contents

Wireless outdoor power plug

Battery (CR2032)

Manual

Downloads

Downloads

manuals

Manuals

Version 1.0 | Multilingual
User manual

Size: 0.59 MB
Type: pdf

Version 1.0 | Multilingual
Addendum

Size: 0.29 MB
Type: pdf
leaflets

Leaflets

English
Standard leaflet

Type: pdf

English
Extended leaflet

Type: pdf
