Currently available
Paxxon

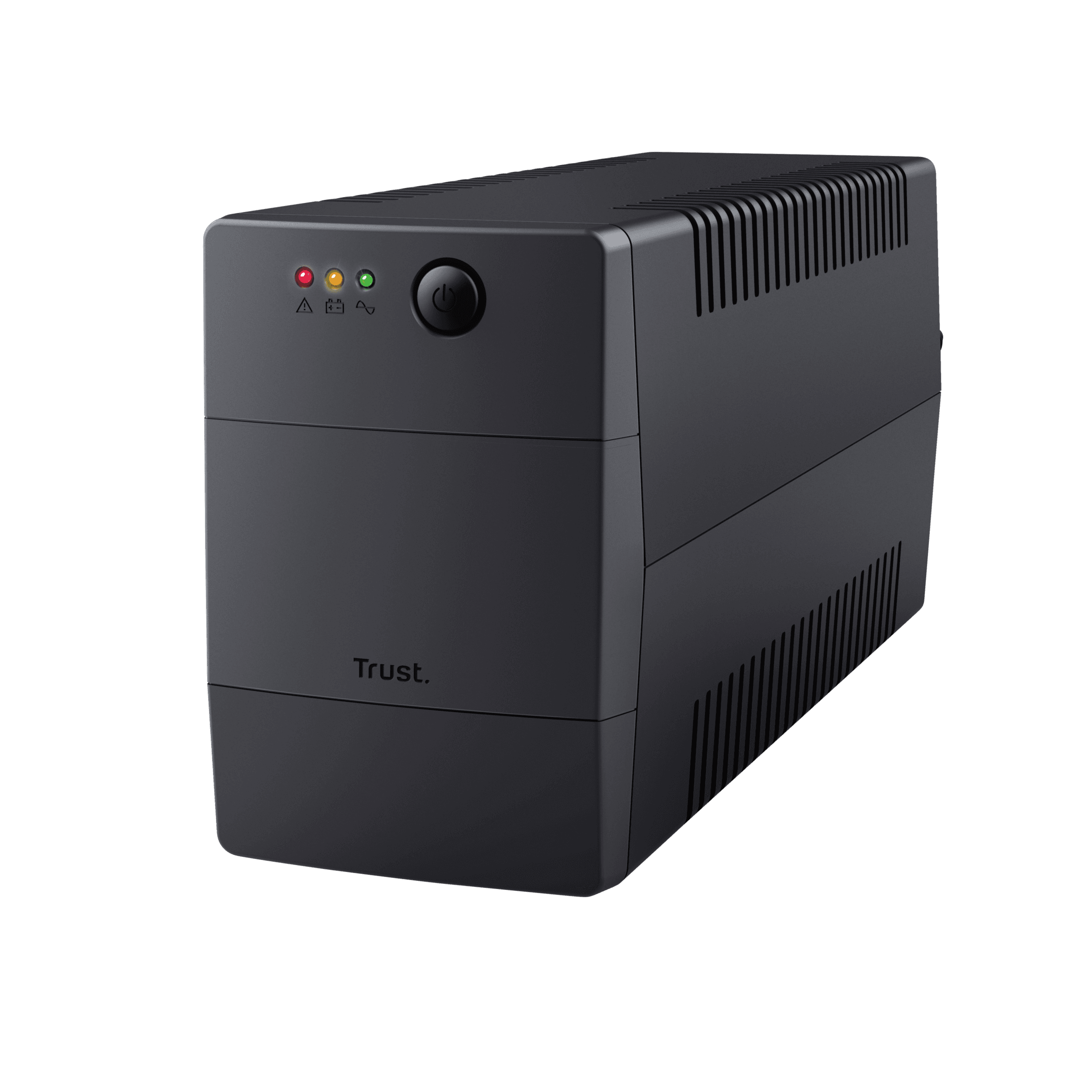

800VA Uninterruptible Power Supply (UPS)
Reliable 800VA battery back-up UPS with 2 wall power outlets, suitable to power and protect your electronic devices
In Safe Hands
You can rest easy, knowing that the Trust Paxxon 800VA is keeping an eye out for your devices. The reliable UPS is an ideal secondary power source to your electronics, keeping them running temporarily during power grid blackouts, and protecting them from power surge damage.
Key features
Protect Your Devices
With 2 standard wall power outlets, the Paxxon is equipped to protect whatever device or peripheral is connected to it: computer, TV, gaming console, home automation or alarm system, router or modem, or other wall-powered devices. You can connect devices up to a maximum total of 480 Watts or 800VA.
Safe Shutdown
During a blackout, the UPS’ large battery generously covers the power needs of an entry-level desktop computer. With 3 minutes of runtime* to save your work and safely shut the system down, the quality of your files and equipment is guaranteed to be maintained.
* At 240W capacity load
Stable Output
Thanks to the AVR function, the UPS will maintain a stable output voltage. In the event of power surges or spikes, your equipment is in safe hands. So safe, that we’re offering an extended warranty of up to € 20.000 on connected equipment.**
** Check conditions on trust.com
product-specifications
Specifications
General
Height of main product (in mm)
142 mm
Width of main product (in mm)
101 mm
Depth of main product (in mm)
300 mm
Total weight
4900 g
Weight of main unit
4900 g
Features
Management function (USB)
no
USB connection
no
Status display
no
Audible alarm
yes
Software
no
Control
Indicators
Battery empty, Battery, Activity, Charging
Connectivity
Cable detachable
no
Cable length main cable
140 cm
Protection
Protections
current-recoil, over-charge, over-current, over-discharge, over-heat, over-load, short-circuit
Auto Voltage Regulation
yes
RFI-filter
no
Surge protected AC outlets
yes
Surge protected phone line
no
Power
Number of batteries
1
Battery composition (Alkaline, Li-ion, etc.)
Lead Acid
Power inlet connection
Schuko (Type F)
Power outlet socket type
Schuko
Battery capacity (Ah)
9 Ah
Battery voltage (V)
12 V
Number of power outlets
2
Battery charge time (hours)
8 hours
100% capacity runtime (seconds)
5 seconds
50% capacity runtime (minutes)
3 minutes
Input
Nominal input voltage
220-240Vac
Operating voltage range
162-290Vac
Output
Output power capacity (W)
480 W
Output power capacity (VA)
800 VA
Output voltage range
nominal voltage
Frequency response UPS
50Hz +/- 1Hz
Waveform type
simulated sine wave
Compatibility
Compatible Device Types
tablet, smarttv, pc, laptop, lamp, gaming console, dj gear
Extra information
Item number
23503
EAN code
8713439235036
Warranty
1 year
Package contents
UPS unit
User guide
System requirements
- Grounded wall power connection
faq
FAQ
Frequently Asked Questions (FAQ)
- First let the UPS charge overnight: plug it in, turn it on, and with no load attached, let it charge for at least 9 hours.
- When the UPS is fully charged, connect the equipment to the UPS. Make sure to not exceed 360W.
Drivers are available in the downloads section.
- Green LED: This indicates that the UPS is operating normally on utility power from your wall socket.
- Yellow LED plus sound: This indicates that your UPS isn't operating on utility power from your wall socket. Check the wall power, and cabling.
- Red LED plus sound: This indicates an error, and can have 2 reasons:
1. The equipment connected to the UPS is drawing more power than the UPS can provide. Each model of UPS is capable of handling a predetermined amount of power draw. Verify that the wattage draw from your equipment plugged into the outlets does not exceed the Watt rating.
2. The battery is near the end of its useful life. It is a warning that the battery needs to be replaced. It does not necessarily mean that the battery is dead. The typical life span of the battery is 2-4 years depending on use and environment (temperature). Before replacing the battery, however, you should let the UPS charge overnight (leave it plugged in, turned on, and with no load attached). Then test the UPS. If the UPS fails the test and the unit is still in warranty (2 years from date of purchase), contact our support for further troubleshooting. If the unit is out of warranty, a replacement battery should be ordered from your local retailer.
Each model of UPS is capable of handling a predetermined amount of power draw. Always make sure that the wattage draw from your equipment plugged into the outlets does not exceed the Watt rating. The Watt rating of your UPS is 360W.
Modern batteries do not require this, but is optional.
Backup time is highly dependent on what type of PC is connected.
The time mentioned on package/website is the maximum backup time.
The time mentioned on package/website is the maximum backup time.
Please check if the circuit breaker on the back of the device has tripped. If so, the button labeled “press to reset” should have sprung out. When this is the case, please turn off the UPS, disconnect all attached devices and press the button on the back. This will reset the circuit breaker.
After resetting the circuit breaker, please turn on the UPS to see if it works and reconnect the devices one by one.
In the event that the UPS won’t turn on after resetting the breaker, please contact our support team via the 'ask a question' option on the product page.
If your UPS is still under warranty (the warranty term for UPS is 2 years), we suggest you to get in contact with your retailer and replace it under the proof of purchase.
If your UPS is no longer covered by warranty and you want to replace the battery, you can find a suitable battery in special stores or on the internet.
If your UPS is no longer covered by warranty and you want to replace the battery, you can find a suitable battery in special stores or on the internet.
The UPS outputs a so called "stepped sine" voltage.
Some voltage meters misunderstand this and display a wrong voltage.
Note: Connected devices won't have any problem with this stepped sine voltage.
Unfortunately, we do not have service centers to repair products.
A defective product should be replaced by your point of purchase during the warranty period.
We offer a 'return to retailer' warranty on our products. In case of a defect, you can return the product to your retailer with failure description, proof of purchase and all accessories. During the warranty period you will receive a replacement product from the retailer if available. For full warranty conditions you can consult: https://www.trust.com/support/warranty
This particular product has been developed for use with the Windows operating systems only.
Therefore drivers or installation instructions for other operating systems such as Mac are not available.
More information about the extended warranty can be found at:
www.trust.com/support/warranty/power/23503
